Torrento® X Filter

Download Image

Best-in-class filtration of aqueous, outgassing, and aggressive acid and base chemistries in sub 22 nm technology nodes. Enables high flow rate and retention performance.

Read More Read Less

Specify Your Part

Filter Cleaning

Typical Flow Rate

Chemlock® Key

Form Factor

Length

Retention Rating

Connection

O-ring

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Torrento® X Filter Applications

Industry: Semiconductor
Process: Wet Etch and Clean, Facilities
Chemistry: Aggressive Acids, Aggressive Bases, Resist Stripper
Installation Point: Point of Tool, Point of Dispense, Bulk

Specifications

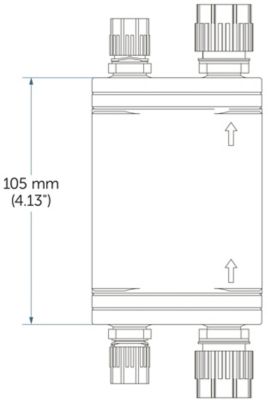

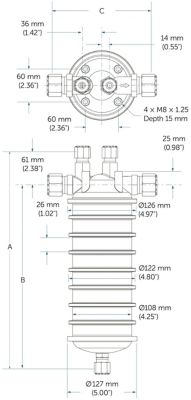

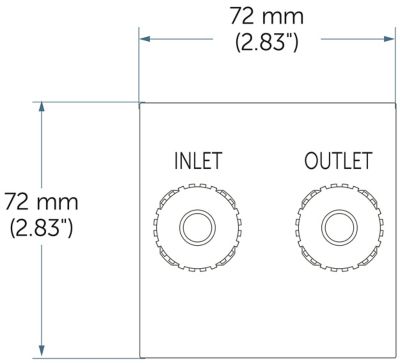

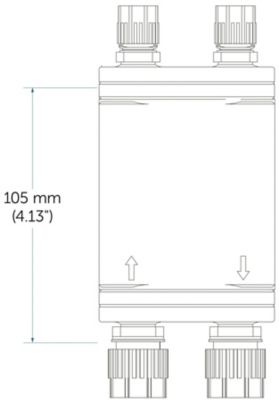

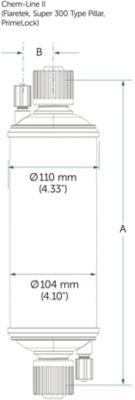

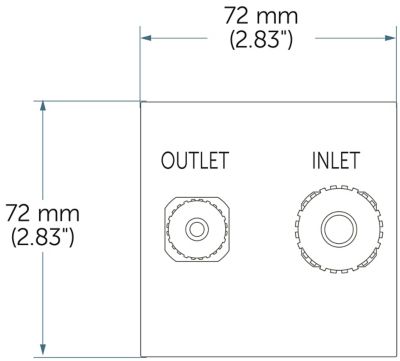

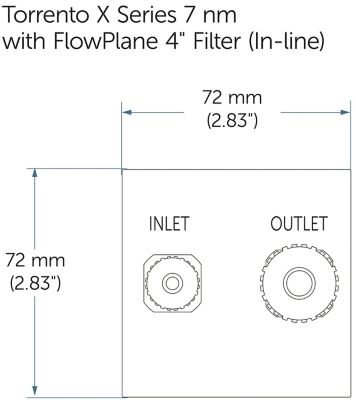

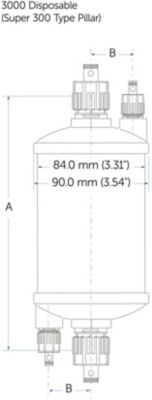

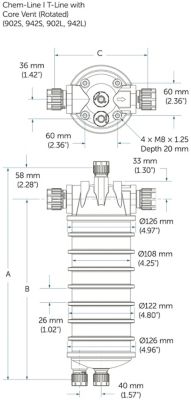

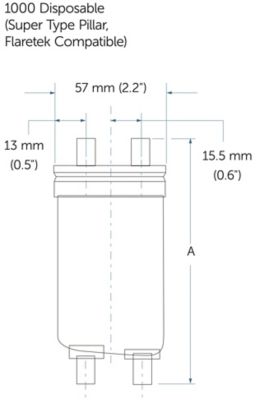

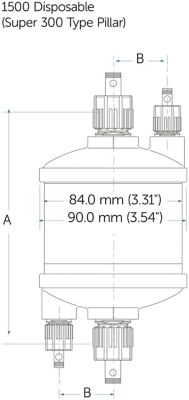

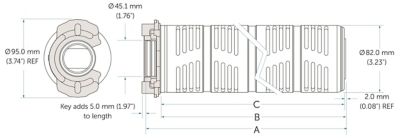

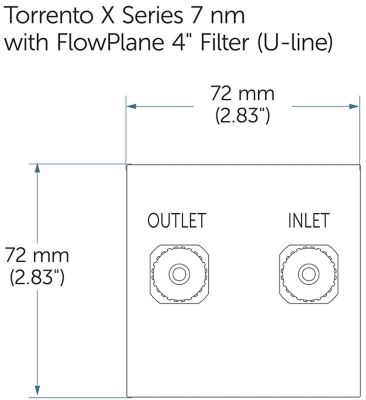

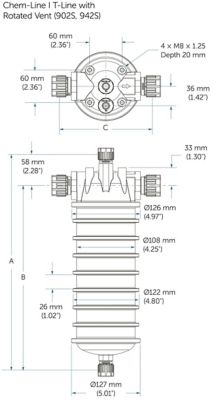

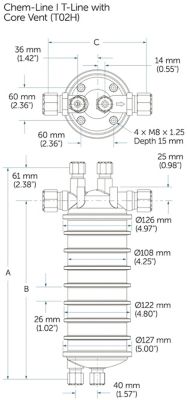

Drawings

Performance Data

Product Specifications

		Torrento X Series Small Disposables 1000/1500	Torrento X Series Small Disposables 3000	Torrento ATE/AT3 Cartridges Chem-line™ I and II	Torrento ATE/AT3 Disposables
Materials:	Membrane:	Non-dewetting PTFE	Non-dewetting PTFE	Non-dewetting PTFE	Non-dewetting PTFE
	Supports, shell:	PFA		PFA
	Catridge O-ring options:		-	E-FKM, E-ETP, Kalrez^® (6375UP)	-
Surface area:		1000 type — 0.10 m² (1.1 ft²) 1500 type — 0.19 m²(2.05 ft²)	0.44 m² (4.74 ft²)
Rentention rating:		10 nm
Membrane area:			-	ATE 10"	2 m² (21 ft²)
				AT3 10"	3 m² (32 ft²)
Cartridge connections:				Code 0 (2-222) o-rings
Maximum operating conditions:	Maximum operating pressure:	0.59 MPa (5.9 bar; 86 psi) @ 25°C (77°F)		0.58 MPa (5.8 bar, 84 psi) @ 25°C (77°F)
		0.19 MPa (1.9 bar; 28 psi) @ 95°C (203°F)		0.097 MPa (0.97 bar, 14 psi) @ 200°C (392°F)
	Maximum forward differential pressure:	0.39 MPa (3.9 bar; 57 psi) @ 25°C (77°F)		0.44 MPa (4.4 bar; 64 psi) @ 25°C (77°F)
				0.05 MPa (0.52 bar, 7.5 psi) @ 200°C (392°F)
	Maximum reverse pressure:	0.29 MPa (2.9 bar; 42 psi) @ 25°C (77°F)		0.34 MPa (3.45 bar, 50 psi) @ 25°C (77°F)
	Maximum operating temperature:	95°C (203°F)		200°C (392°F)
Metallic extractables:	UCM Clean			Testing conducted for 16 metals
	X-UCM clean*	Testing conducted for 23 metals		Testing conducted for 23 metals
Other extractables:	UCM Clean			TOC, CI
	X-UCM clean*	TOC, CI, F	TOC, CI, F (for 10 nm)	TOC, CI, F

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Oct 1, 2022 Data Sheet Torrento® X Series Filters Featuring FlowPlane™ Linear Filtration Technology

1.7 MB

Published Jul 1, 2021 Brochure Liquid Filtration Solutions

2.1 MB

Published Jun 19, 2019 Spec Sheet Torrento® X Series Filters with 2 nm Retention

273.3 kB

Part Numbers

Torrento® X Filter Part Numbers

Part Number	Filter Cleaning	Typical Flow Rate	Chemlock® Key	Form Factor	Length	Retention Rating	Connection	O-ring
TR2T31CM01FP	UCM +	High Flux	N/A	Chem-Line™ I Large Disposable	10"	10 nm	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	N/A
TR2T31X142SP	X-UCM	High Flux	N/A	Chem-Line™ II Large Disposable	10"	10 nm	In-line male offset, 1" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	N/A
TR2T31XM01FP	X-UCM	High Flux	N/A	Chem-Line™ II Large Disposable	10"	10 nm	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	N/A
TR2T31XM41SP	X-UCM	High Flux	N/A	Chem-Line™ II Large Disposable	10"	10 nm	In-line male, 1" inlet/outlet, 1/4" vent/drain, Super 300 Type Pillar® fitting	N/A
TR2TE1X142SP	X-UCM	Mid flux	N/A	Chem-Line™ II Large Disposable	10"	10 nm	In-line male offset, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	N/A
TR2TE1XM01FP	X-UCM	Mid flux	N/A	Chem-Line™ II Large Disposable	10"	10 nm	In-line male, 3/4" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	N/A
TRCT31C00KP	UCM +	High Flux	Yes	Cartridge	10"	10 nm	Code 0	E-FKM
TRCT31C0B0P	UCM +	High Flux	No	Cartridge	10"	10 nm	Code 0	E-ETP
TRCT31C0BKP	UCM +	High Flux	Yes	Cartridge	10"	10 nm	Code 0	E-ETP
TRCT31X0BKP	X-UCM	High Flux	Yes	Cartridge	10"	10 nm	Code 0	E-ETP
TRCT32C0B0P	UCM +	High Flux	No	Cartridge	20"	10 nm	Code 0	E-ETP
TRCT32C0BKP	UCM +	High Flux	Yes	Cartridge	20"	10 nm	Code 0	E-ETP
TRCTE1C00KP	UCM +	Mid-High Flux	Yes	Cartridge	10"	10 nm	Code 0	E-FKM
TRCTE1C0BKP	UCM +	Mid-High Flux	Yes	Cartridge	10"	10 nm	Code 0	E-ETP
TRCTE1C0RKP	UCM +	Mid-High Flux	Yes	Cartridge	10"	10 nm	Code 0	Kalrez® 6375UP
TRCTE1X0B0P	X-UCM	Mid-High Flux	No	Cartridge	10"	10 nm	Code 0	E-ETP
TRCTE1X0BKP	X-UCM	Mid-High Flux	Yes	Cartridge	10"	10 nm	Code 0	E-ETP
TRCTE2C0BKP	UCM +	Mid-High Flux	Yes	Cartridge	20"	10 nm	Code 0	E-ETP
TRCTE2C0R0P	UCM +	Mid-High Flux	No	Cartridge	20"	10 nm	Code 0	Kalrez® 6375UP
TRDT31X902SP	X-UCM	High Flux	N/A	Chem-Line™ I Large Disposable	10"	10 nm	T-line rotated vent, 3/4" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	N/A
TRDT31X942SP	X-UCM	High Flux	N/A	Chem-Line™ I Large Disposable	10"	10 nm	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	N/A
TRPT10XM11FP	X-UCM	Low Flux	N/A	P1500 Small Disposable	4"	10 nm	1/4" inlet/outlet, 1/4" vent/drain, Flaretek® fitting	N/A
TRSM04E00P6M31SP	UCM-10	Mid flux	N/A	FlowPlane™ Small Disposable	4"	7 nm	In-line male, 3/8" inlet/outlet, 1/4" vent drain, Super 300 Type Pillar® fitting	N/A
TRVT31C942SP	UCM +	High Flux	N/A	Chem-Line™ I Large Disposable	10"	10 nm	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	N/A
TRVTE1C902SP	UCM +	Mid-High Flux	N/A	Chem-Line™ I Large Disposable	10"	10 nm	T-line rotated vent, 3/4" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	N/A
TRVTE1C942SP	UCM +	Mid-High Flux	N/A	Chem-Line™ I Large Disposable	10"	10 nm	T-line rotated vent, 1" inlet/outlet, 1/2" vent/drain, Super 300 Type Pillar® fitting	N/A
