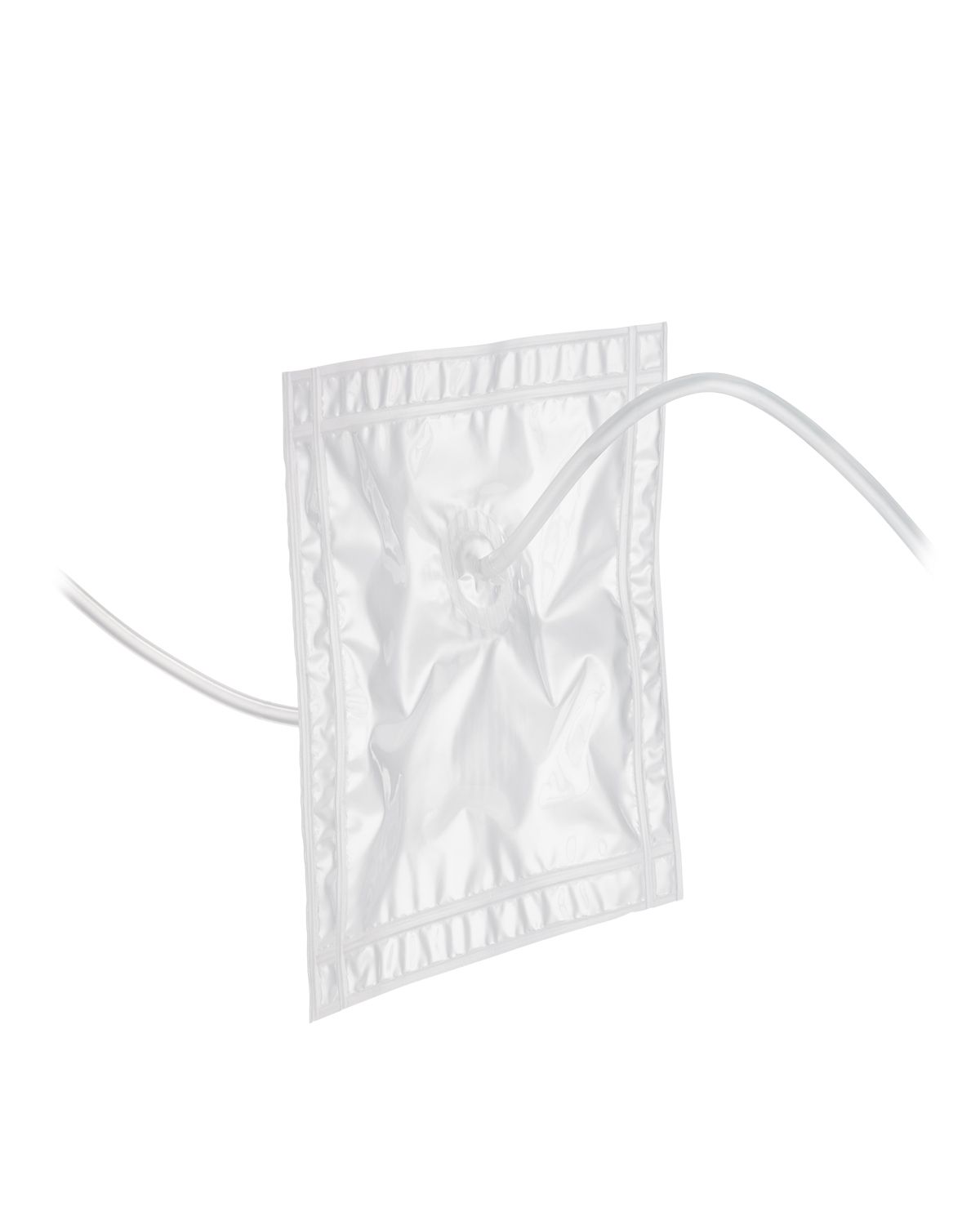

Microcarrier and Cell Separation System

Download Image

Create a completely sterile microcarrier separation process using this streamlined bag system.

Simple user- and process-friendly operation can be used for continuous biomanufacturing
Peristaltic pump operation minimizes capital costs
Streamlined single-use consumables require less operator training and minimize risk of mishandling
Chemically inert PET mesh results in high chemical compatibility
Customizable system design is adaptable to fit seamlessly in existing processes and is functional with a vast majority of commercially available bead sizes
Hanging and tabletop configurations provide process versatility
1/4" standard port size with customizable options available upon request

Read More Read Less

Specify Your Part

Chamber Geometry

Nominal Mesh Size

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

We have high capability of design configuration; contact Entegris for additional ports or customization, as well as more information on lead times.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Microcarrier and Cell Separation System Applications

Separation of microcarrier beads
Final product filtration
Harvest
Cell washing/separation
Purification

Specifications

Drawings

Product Specifications

Tubing type	TPE (silicone and other options available upon request)
Mesh	Polyethylene terephthalate (PET)
Connectors	Male and female Luers
Bag film	Flex 100/150, Flex 200

Standard Features

Microcarrier and cell separations systems are sterilized using gamma irradiation between 25 – 40 kGy
Entegris offers standard microcarrier and cell separation systems in 20, 40, 70, and 200 micron options. Standard geometries are available in the following configurations:
- 6" x 6" (500 mL nominal)
- 11" x 11" (2 L nominal)
- 20" x 20" (10 L nominal)
Full traceability for all materials
Can be configured with a wide array of inlet/outlet connector and tubing options to help facilitate simple integration within your process
Certrificates of Analysis provided for each lot
Manufactured under a quality system that is compliant with 21 CRF Part 820: Quality System Regulation

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Apr 1, 2026 Data Sheet Microcarrier and Cell Separation System

489.1 kB

Published Nov 1, 2022 Data Sheet Life Sciences Films

488.2 kB

Published Aug 1, 2022 Application Note Magnetic Bead Removal Using Microcarrier and Cell Separation System

401.4 kB

Published Jan 2, 2024 Flyer Tubing for Life Sciences Applications

86.6 kB

Videos

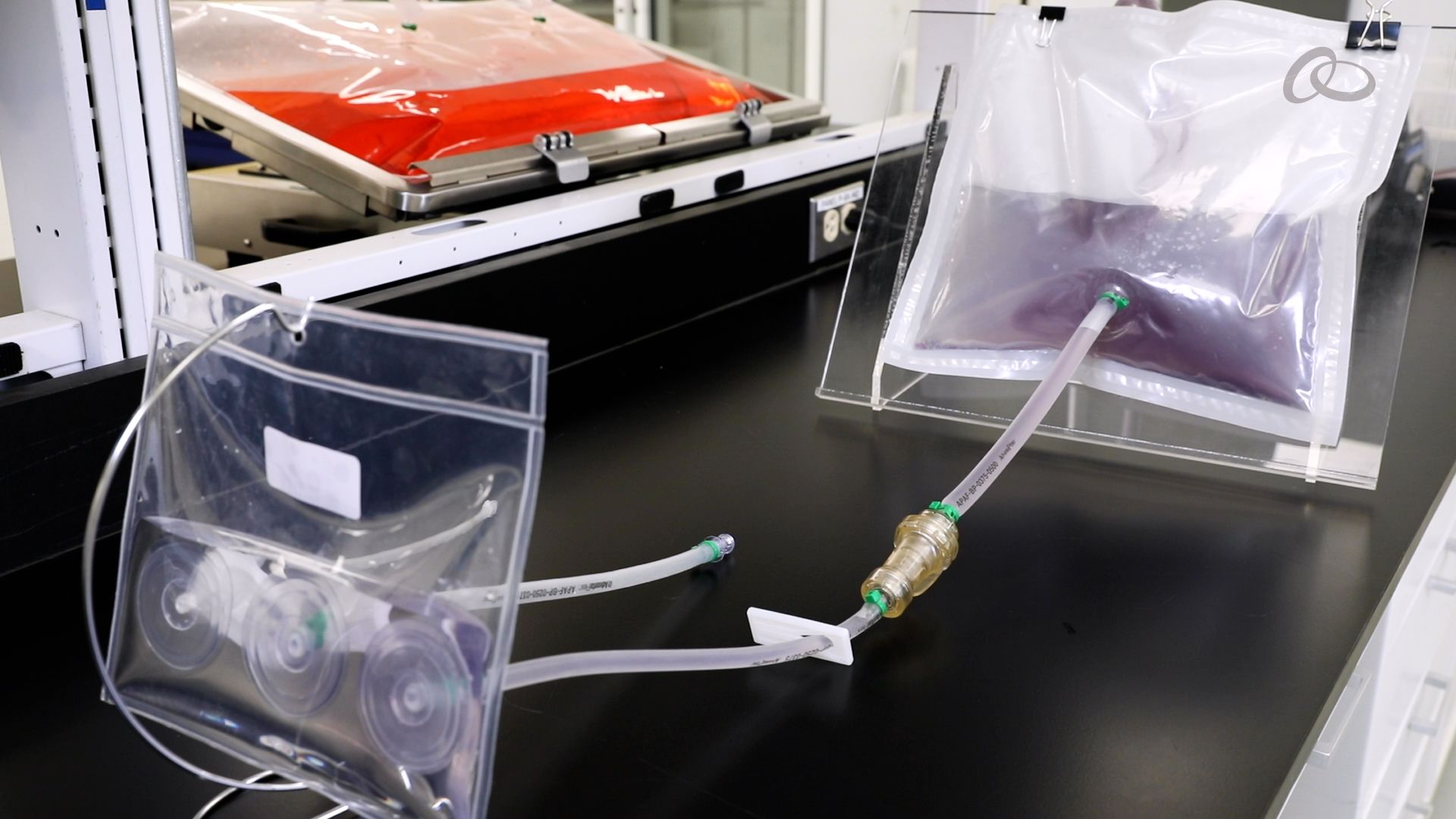

Microcarrier Cell Separation Bags

Part Numbers

Microcarrier and Cell Separation System Part Numbers

Part Number	Chamber Geometry	Nominal Mesh Size
FCC05471.01	Mesh Disc, 2.75”	20 micron
FCC05471.02	Mesh Disc, 2.75”	40 micron
FCC05471.03	Mesh Disc, 2.75”	64 Micron
FCC05471.04	Mesh Disc, 2.75”	100 Micron
FCC05471.05	Mesh Disc, 2.75”	150 Micron
FCC05471.06	Mesh Disc, 2.75”	200 micron
FCC05471.07	Mesh Disc, 2.75”	224 Micron
FCC05471.08	Mesh Disc, 2.75”	300 Micron
FCC05472.01	Mesh Disc, 5.75”	20 micron
FCC05472.02	Mesh Disc, 5.75”	40 micron
FCC05472.03	Mesh Disc, 5.75”	64 Micron
FCC05472.04	Mesh Disc, 5.75”	100 Micron
FCC05472.05	Mesh Disc, 5.75”	150 Micron
FCC05472.06	Mesh Disc, 5.75”	200 micron
FCC05472.07	Mesh Disc, 5.75”	224 Micron
FCC05472.08	Mesh Disc, 5.75”	300 Micron
FSC04570.01	6" x 6"	40 micron
FSC04570.02	11" x 11"	40 micron
FSC04570.03	20" x 20"	40 micron
FSC04571.01	6" x 6"	70 micron
FSC04571.02	11" x 11"	70 micron
FSC04571.03	20" x 20"	70 micron
FSC04572.01	6" x 6"	200 micron
FSC04572.02	11" x 11"	200 micron
FSC04572.03	20" x 20"	200 micron
FSC04573.01	6" x 6"	20 micron

We have high capability of design configuration; contact Entegris for additional ports or customization, as well as more information on lead times.
