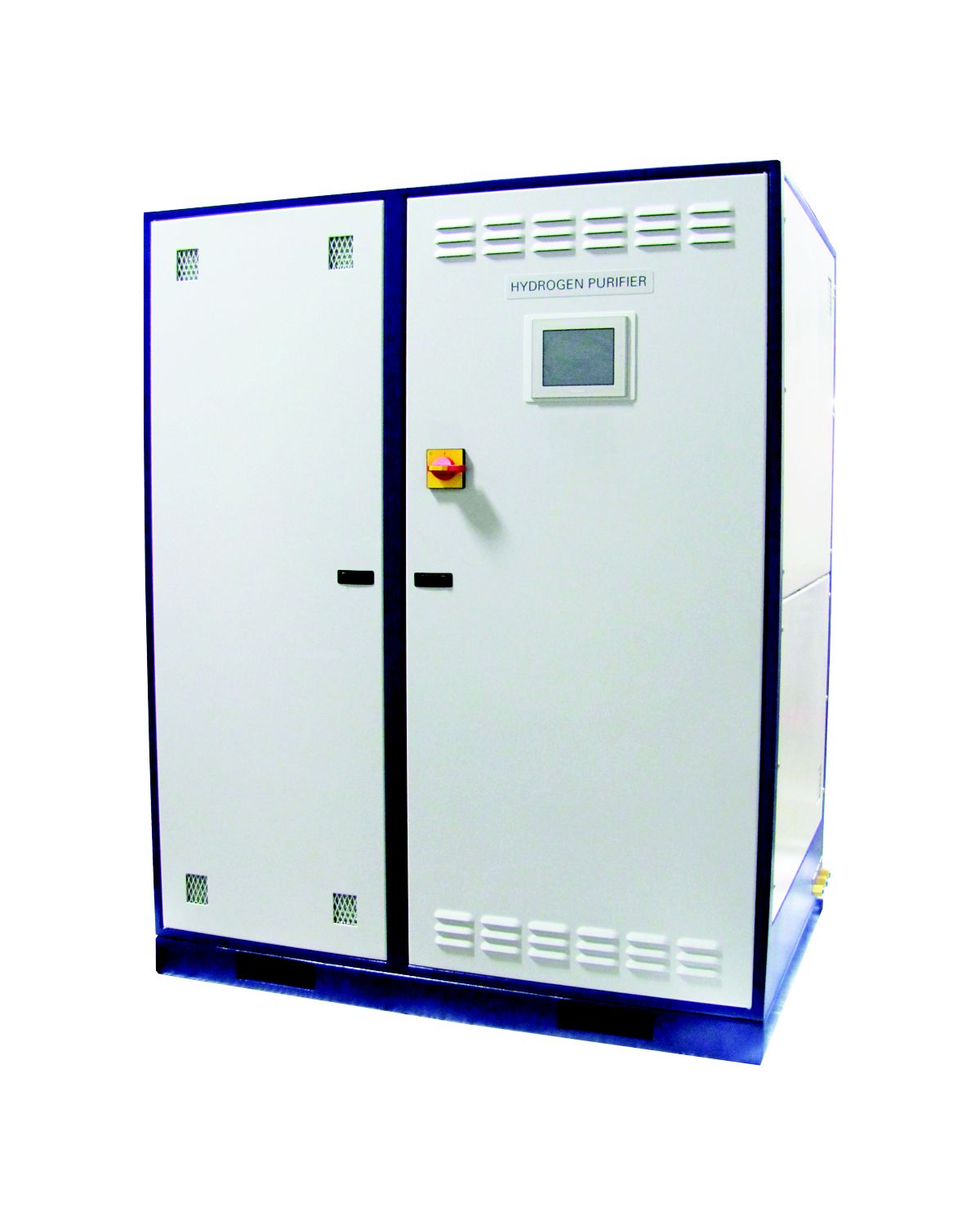

MegaTorr® PS7-H Hydrogen Gas Purifiers
Contact your Entegris account manager or
- Semiconductor
- Data storage
- Flat panel display
- LED
- Solar
Specifications
Dimensions
Model | H (cm) | W (cm) | D (cm) | Weight (kg) |
PS7-MGT20-H | 205 | 161 | 120 | <862 |
PS7-MGT40-H | 205 | 161 | 120 | <862 |
PS7-MGT100-H | 198 | 130 | 163 | <1,365 |
PS7-MGT200-H | 226 | 193 | 193 | <2,500 |
Outdoor Enclosure Options (OPAL) |
|
Gas purified | H2 | |
Impurities removed to <1 ppb | H2O, O2, CO, CO2, THC (including CH4), N2 | |
Maximum flow rates | ||
PS7-MGT20 | 20 Nm3/hr (333 slpm) | |
PS7-MGT40 | 40 Nm3/hr (667 slpm) | |
PS7-MGT100 | 100 Nm3/hr (1,667 slpm) | |
PS7-MGT200 | 200 Nm3/hr (3,333 slpm) | |
Maximum pressure drop | <1 bar (100 kPa) | |
Average power consumption | ||
PS7-MGT20 | 4 kW | |
PS7-MGT40 | 8 kW | |
PS7-MGT100 | 22 kW | |
PS7-MGT200 | 50 kW | |
Note: Purifiers are gas specific and should only be used for the gas indicated. |
Standard Features• Automated microprocessor controller • Touchscreen operation interface • Password protected control system • System alarms • Temperature interlocks • N2 purged secondary enclosure • H2 leak detection sensor • Vented cabinet purge • Over-pressurization safety relief system |
• Electric gas preheater • Dual, closed-loop temperature controls • Redundant heating elements • Pressure transducers • Battery backup • Back-up pneumatic reservoir • Water cooled heat exchanger • All metal enclosure with doors |
Optional Features• Mass flowmeter with 4-20 mA output • Internal auto bypass • Separate control power • UPS - uninterruptible power supply |
Customer Interface Connections• Alarm relay - fail safe relay contacts allow remote alarm condition detection • Remote contact shutdown - allows remote purifier shutdown • Mass flowmeter and totalizer 4-20 mA is available when MFM is specified |
