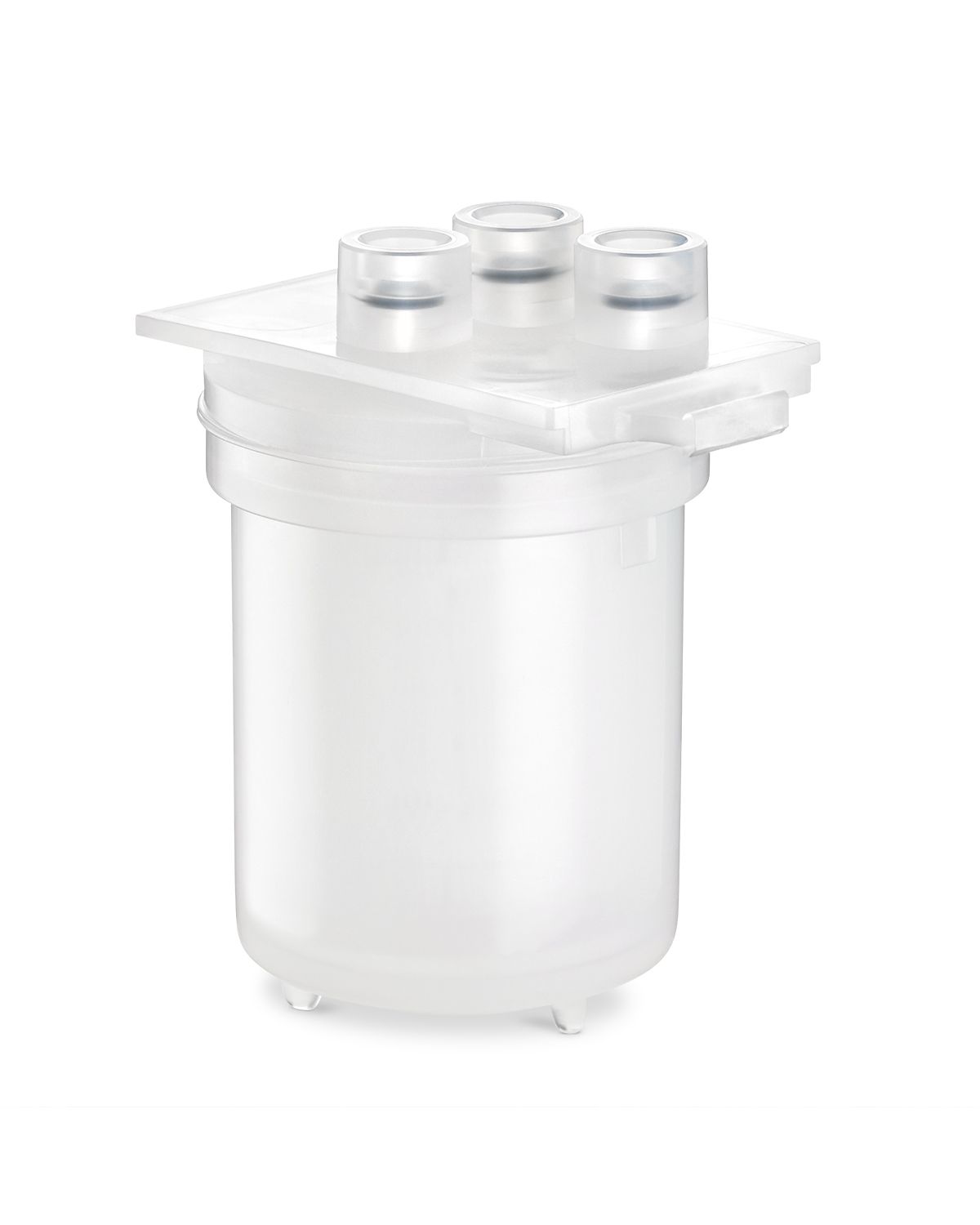

Eximor® SV5 Filter
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Negative tone development (NTD) solvents
- Reducing resist consumption (RRC) solvents
Specifications
Materials | Membrane | PTFE-based |
Shell, core, supports | PFA | |
O-ring (OF) | Kalrez® perfluoroelastomer | |
Maximum operating conditions | Maximum inlet pressure | 0.39 MPa (3.9 bar, 57 psi) @ 25°C (77°F) |
Maximum forward/reverse differential pressure | 0.29 MPa (2.9 bar, 42 psi) @ 25°C (77°F) | |
Maximum operating temperature | 40°C (104°F) | |
Hold up volume | 50 mL | |
Compatibility | Visit our Chemical Compatibility web page | |
Entegris recommends that customers change filters at least annually to ensure optimal filtration performance. Routine annual changeout will also reduce the potential of chemical leakage that can result from excessive usage. Our standard warranty period is 1 year (from Entegris ship date). |
