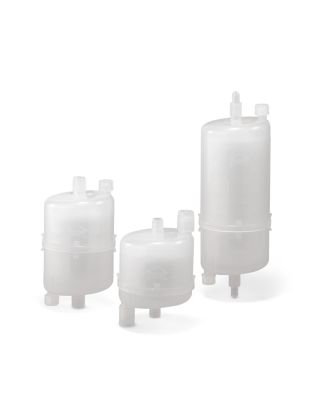

ProcessGard® PTFE Plus Disposable Filters
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- The hydrophobic format is for use in IPA or weak solvent applications
- The hydrophilic format is for use in DI water or water-based chemical solutions
Specifications
| Long (5") | Short (2.5") | Half (1.5") | ||||||
| IN/OUT Fitting | Vent/Drain Fitting | Vent/Drain Plug | A | B | A | B | A | B |
| 1/4 Comp. Seal | 1/4 Comp. Seal | 2 pieces | 155.6 mm (6.13") |
182.5 mm (7.19") |
100.6 mm (3.96") |
127.7 mm (5.03") |
70.6 mm (2.78") |
97.5 mm (3.84") |
| 1/2 Comp. Seal | 1/4 Comp. Seal | 2 pieces | 155.6 mm (6.13") |
188.4 mm (7.42") |
100.6 mm (3.96") |
133.5 mm (5.26") |
70.6 mm (2.78") |
103.5 mm (4.07") |
| 1/4 MNPT | 1/8 MNPT | 2 pieces | 155.6 mm (6.13") |
185.5 mm (7.30") |
100.6 mm (3.96") |
130.5 mm (5.14") |
70.6 mm (2.78") |
100.5 mm (3.96") |
| 1/4 Flare | 1/8 MNPT | 2 pieces | 155.6 mm (6.13") |
210.2 mm (8.28") |
100.6 mm (3.96") |
155.2 mm (6.11") |
70.6 mm (2.78") |
125 mm (4.92") |
| 3/8 Flare | 1/4 Flare | No plug | 155.6 mm (6.13") |
209.1 mm (8.23") |
100.6 mm (3.96") |
153.8 mm (6.06") |
70.6 mm (2.78") |
124 mm (4.88") |
| 3/8 FNPT | Female Luer Lock | 2 pieces | 155.6 mm (6.13") |
181 mm (7.13") |
100.6 mm (3.96") |
125.9 mm (4.96") |
70.6 mm (2.78") |
95.9 mm (3.78") |
| Retention rating | 0.05*, 0.1, 0.2, 0.5, 1, 3, 10 µm | |
| Materials | Membrane | Hydrophobic, hydrophilic PTFE |
| Support, core, sleeve, shell | Polypropylene | |
| Maximum operating conditions | Forward differential pressure | 0.4 MPa @ 25°C (77°F) |
| Reverse differential pressure | 0.2 MPa @ 25°C (77°F) | |
| Operating pressure | 0.5 MPa @ 25°C (77°F) | |
| Operating temperature | 60°C (140°F) water | |
| *0.05 for hydrophobic only | ||
