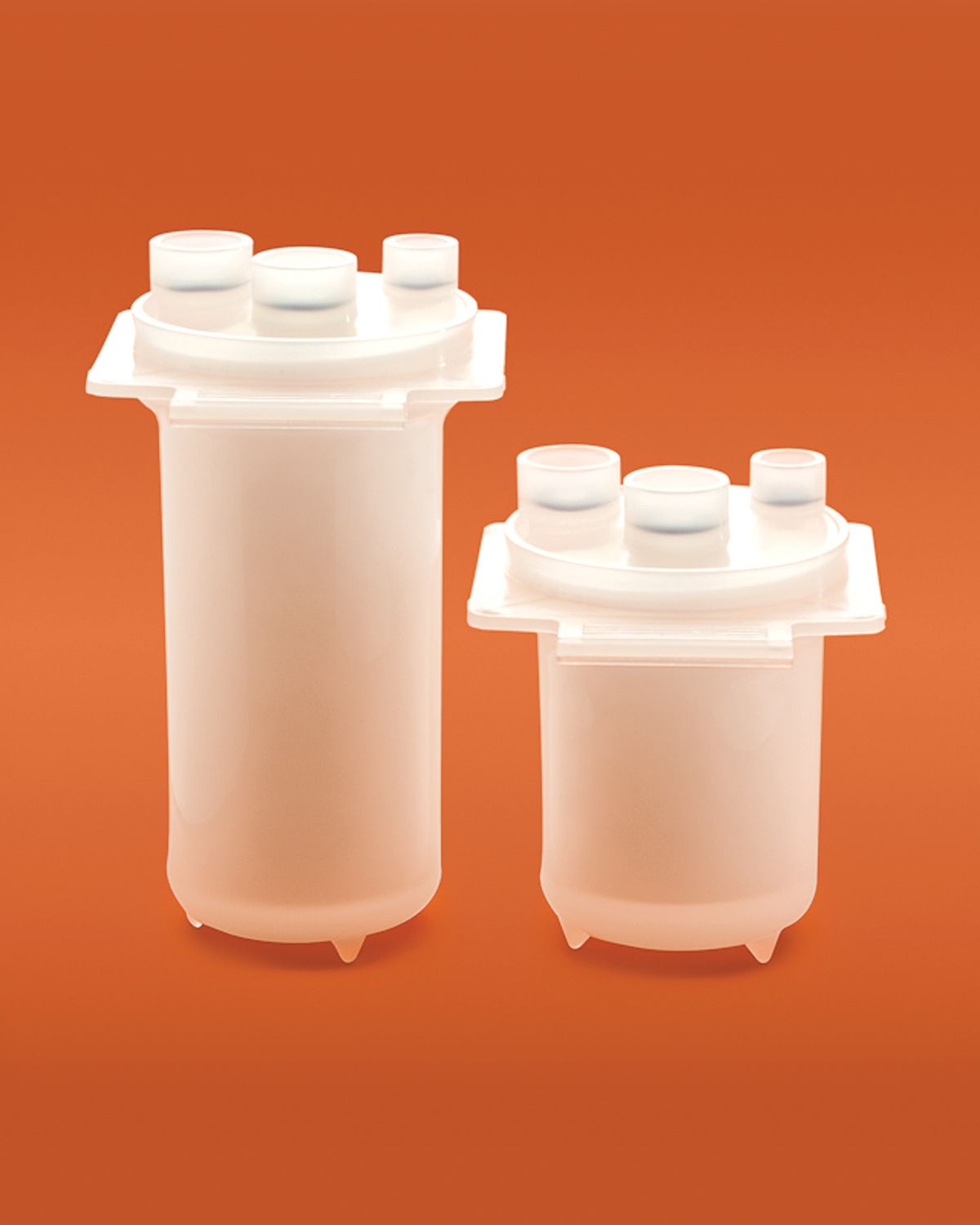

Savana® 1-2-3 PDP Plus Filter

Download Image

Point-of-tool, photoresist and ink filter with good contaminant retention performance and low hold-up-volume in flat panel display color resist/filter applications.

All-polypropylene media for broad process fluid compatibility and appropriate particle removal performance for pigment dispersed color resist.
Self-contained, compact unit requires no tool to change filter, providing rapid filter change-out of less than one minute.
Unique connection design ensures rapid startup with minimal exposure to process chemicals for a safer filter change.
Minimal hold-up volume decreases chemical waste at changeout.
Compact, disposable design provides excellent space savings advantage and plumbing flexibility, enabling smaller footprint system configurations.

Read More Read Less

Specify Your Part

Form Factor

Length

Retention Rating

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Savana® 1-2-3 PDP Plus Filter Applications

Industry: Flat Panel Display, Ink
Process: Color Filter (Color Resist)
Chemistry: Photoresist, Ink
Installation Point: Point of Tool

Specifications

Drawings

Performance Data

Product Specifications

Materials:	Media, shell, supports	Polypropylene
	O-ring	EPDM
Retention rating:	1.2, 2.5 µm
Maximum operating conditions:	Maximum forward differential pressure	0.39 MPa (3.9 bar, 56.6 psi) @ 25°C (77°F)
	Maximum reverse differential pressure	0.27 MPa (2.7 bar, 39.2 psi) @ 25°C (77°F)
	Maximum operating temperature	40°C (104°F)

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jun 13, 2023 Data Sheet Savana® 1-2-3 PDP Plus Filter

183.1 kB

Published Jun 13, 2023 Data Sheet Savana® 1-2-3 PDP Plus Filter - A4

183.2 kB

Part Numbers

Savana® 1-2-3 PDP Plus Filter Part Numbers

Part Number	Form Factor	Length	Retention Rating
SVPP12LEM1P	Long Capsule	6.25"	1.2 µm
SVPP12SEM1P	Short Capsule	4.5"	1.2 µm
SVPP25LEM1P	Long Capsule	6.25"	2.5 µm
SVPP25SEM1P	Short Capsule	4.5"	2.5 µm
