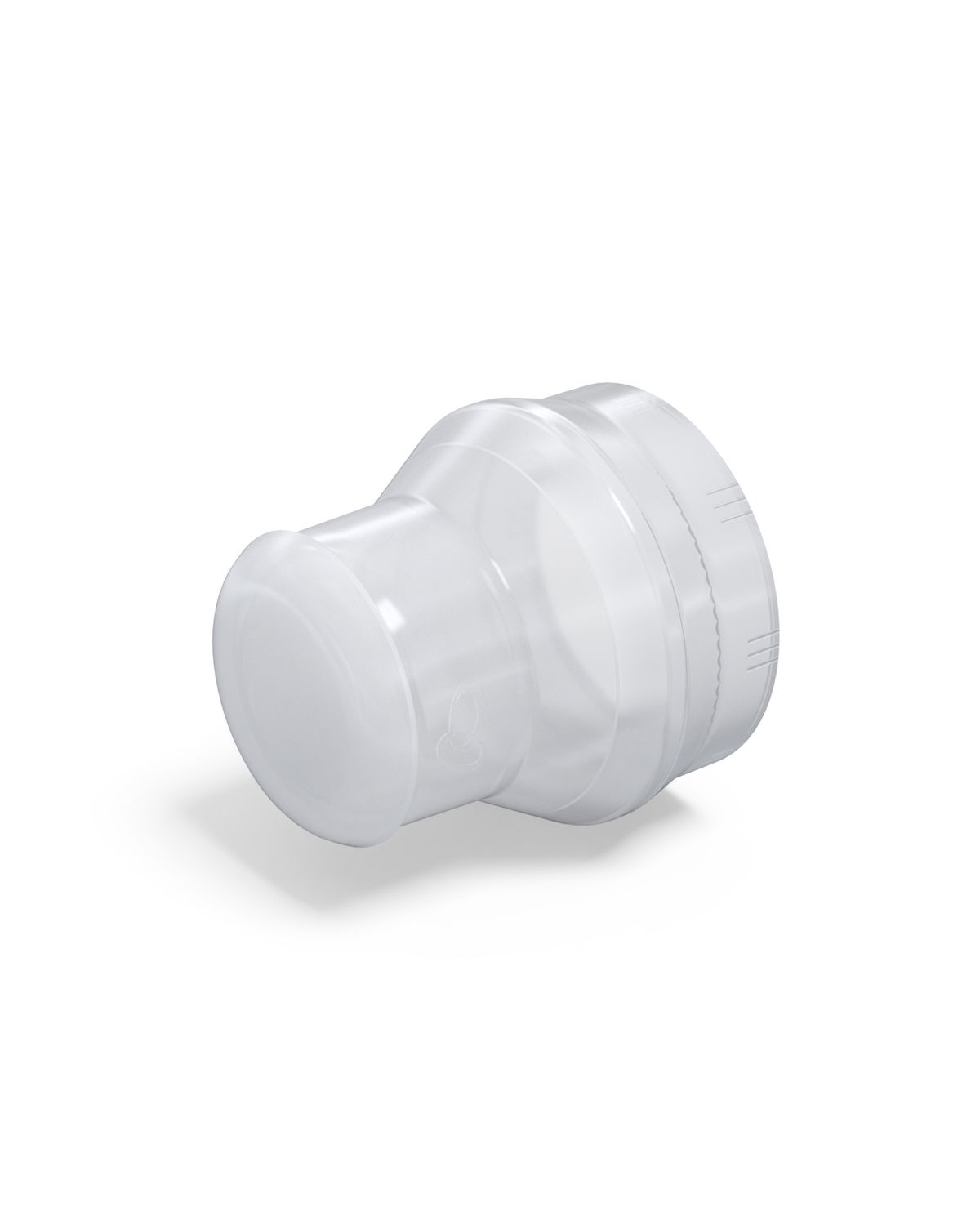

PrimeLock® Cap
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- High-purity, corrosive chemical handling
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- CMP
- Wet etch and clean
- High-temperature cleaning processes
- Solar, LED, flat panel display
- Excellent performance with low surface tension chemistries
Specifications
Part Number | OD Tube Size | Dimension A |
PCAP-4 | 1/4" | 0.79" (20.1 mm) |
PCAP-6 | 3/8" | 0.87" (22.1 mm) |
PCAP-8 | 1/2" | 1.05" (26.7 mm) |
PCAP-12 | 3/4" | 1.22" (31.0 mm) |
PCAP-16 | 1" | 1.28" (32.5 mm) |
PCAP-20 | 1 1/4" | 1.81" (46.0 mm) |
PCAP-24-3* | 1 1/2" | 2.49" (63.2 mm) |
*Includes PFA nut (PNT-24)
Note: 1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
