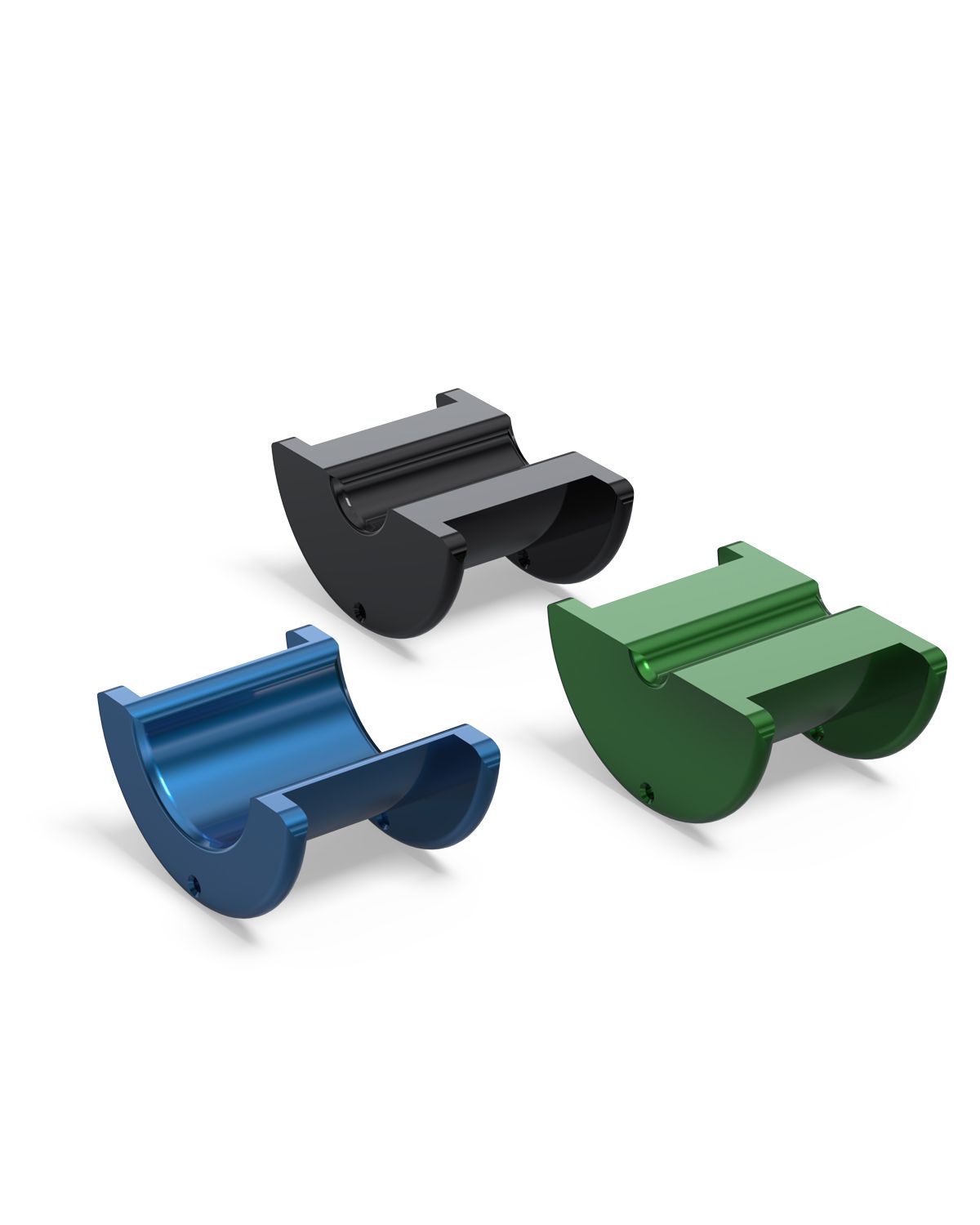

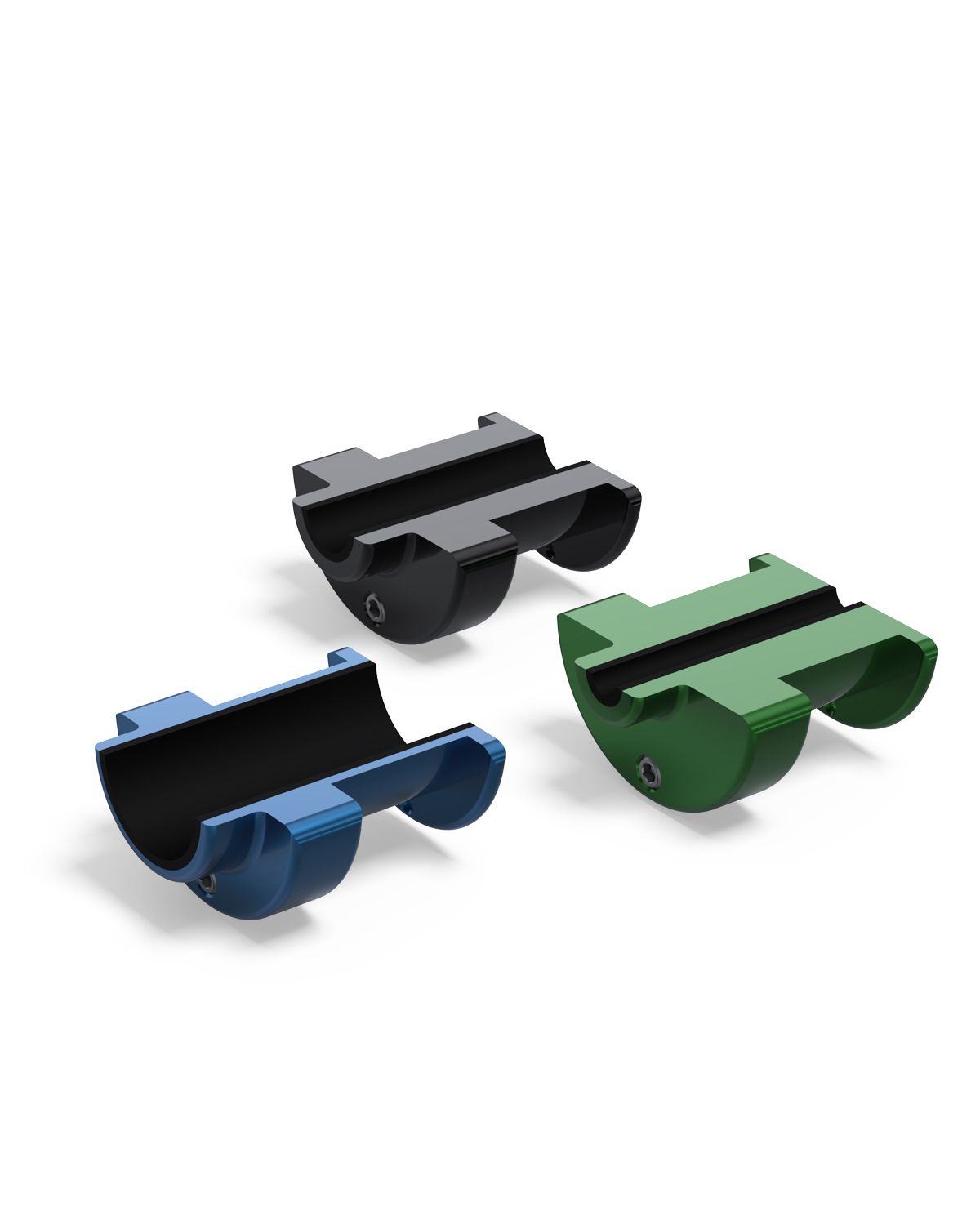

PrimeLock® Clamp Inserts
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- High-purity, corrosive chemical handling
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- CMP
- Wet etch and clean
- High-temperature cleaning processes
- Solar, LED, flat panel display
- Excellent performance with low surface tension chemistries
Specifications
| Part Number | Description | Size |
| PCLMP-6 | Clamp insert | 3/8" |
| PCLMP-8 | Clamp insert | 1/2" |
| PCLMP-12 | Clamp insert | 3/4" |
| PCLMP-16 | Clamp insert | 1" |
| PCLMP-20 | Clamp insert | 1 1/4" |
| PCLMP-24 | Clamp insert | 1 1/2" |
| PCLMP-M40 | Clamp insert | 40 mm |
| PCLMP-KIT | Clamp insert kit1 | 1/4" - 1" |
| PCLMP-4-R | Clamp insert - EPDM lined2 | 1/4" |
| PCLMP-6-R | Clamp insert - EPDM lined2 | 3/8" |
| PCLMP-8-R | Clamp insert - EPDM lined2 | 1/2" |
| PCLMP-12-R | Clamp insert - EPDM lined2 | 3/4" |
| PCLMP-16-R | Clamp insert - EPDM lined2 | 1" |
| PCLMP-20-R | Clamp insert - EPDM lined2 | 1 1/4" |
| PCLMP-24-R | Clamp insert - EPDM lined2 | 1 1/2" |
| PCLMP-M40-R | Clamp insert - EPDM lined2 | 40 mm |
| PCLMP-R-KIT | Clamp insert kit - EPDM lined1, 2 | 1/4" - 1" |
1Kit does not include 1 1/4", 1 1/2" or 40 mm sizes; part numbers sold separately.
2Eliminates clamp marks on tubing
Note: 1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
Successfully Opted for software Updates
Published Feb 23, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1/4" to 1" sizes
852.3 kB
Published Feb 22, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1 1/4, 1 1/2, and 40 mm
669.7 kB
1 1/2" PrimeLock® Fitting Wrench Tightening Instructions
PrimeLock® Insert Installation using a Power Drill for 1 1/4" , 1 1/2" or 40 mm tubing
PrimeLock® Insert Installation Instructions
PrimeLock® Minimum Tube Union Insert Installation Instructions
PrimeLock Fittings
PrimeLock® Fitting Technology and Installation Overview
PrimeLock® Fitting Introduction
Part Numbers
| Part Number | Tube Size | Clamp Insert Types |
|---|---|---|
| PCLMP-12 | 3/4" | Standard |
| PCLMP-12-R | 3/4" | EPDM Lined |
| PCLMP-16 | 1" | Standard |
| PCLMP-16-R | 1" | EPDM Lined |
| PCLMP-20 | 1 1/4" | Standard |
| PCLMP-20-R | 1 1/4" | EPDM Lined |
| PCLMP-24 | 1 1/2" | Standard |
| PCLMP-24-R | 1 1/2" | EPDM Lined |
| PCLMP-4-R | 1/4" | EPDM Lined |
| PCLMP-6 | 3/8" | Standard |
| PCLMP-6-R | 3/8" | EPDM Lined |
| PCLMP-8 | 1/2" | Standard |
| PCLMP-8-R | 1/2" | EPDM Lined |
| PCLMP-KIT | 1/4", 3/8", 1/2", 3/4", 1" | Standard |
| PCLMP-M40 | 40 mm | Standard |
| PCLMP-M40-R | 40 mm | EPDM Lined |
| PCLMP-R-KIT | 1/4", 3/8", 1/2", 3/4", 1" | EPDM Lined |
