PrimeLock® Connection Verification Gauge
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.

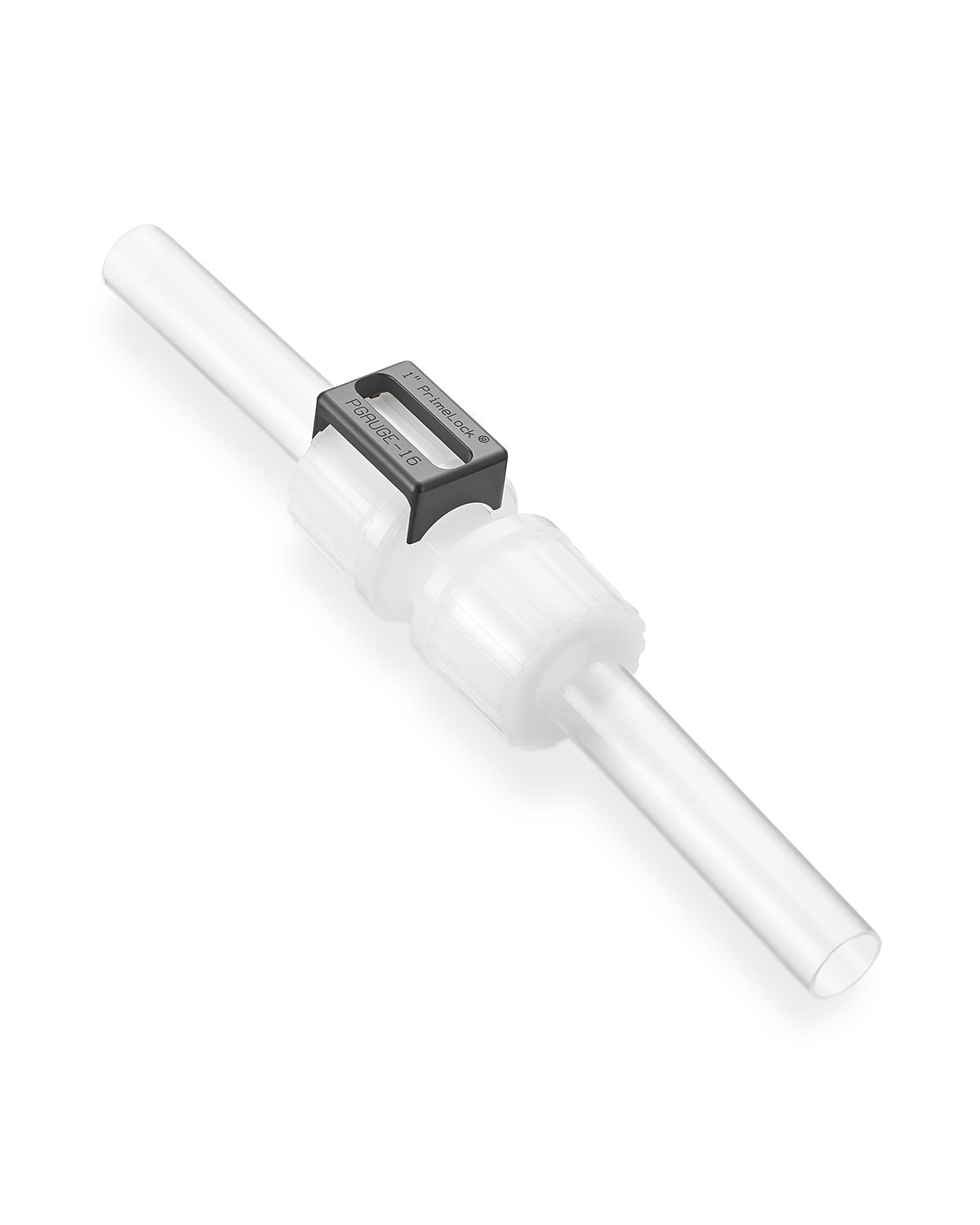

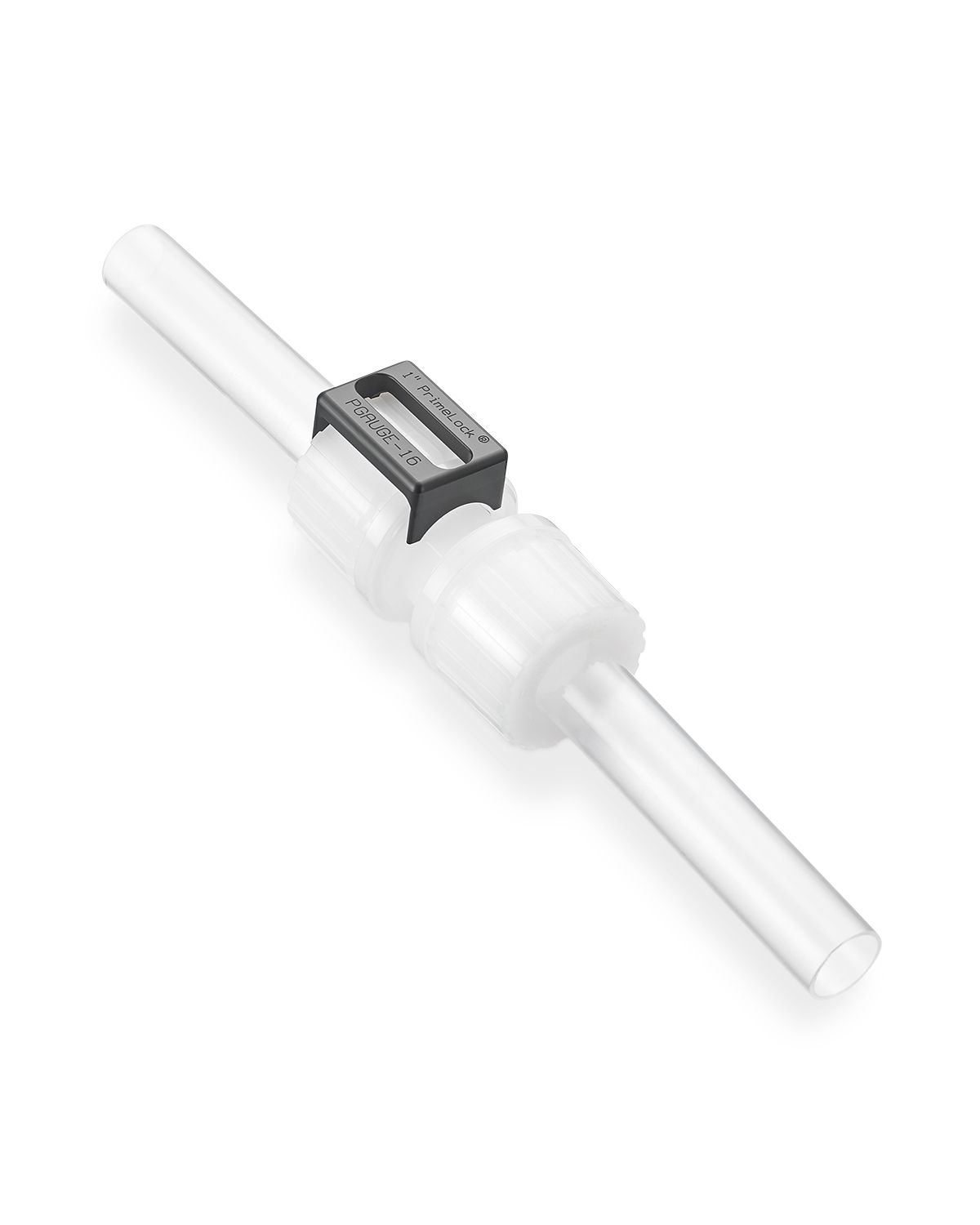

To Use: Slip the gauge over the PrimeLock nut and PrimeLock connection verification ring. If it easily seats, the connection is properly tightened and secure.
Note: This gauge can be used for first time/initial tightening only. Contact Entegris for retightening recommendations.

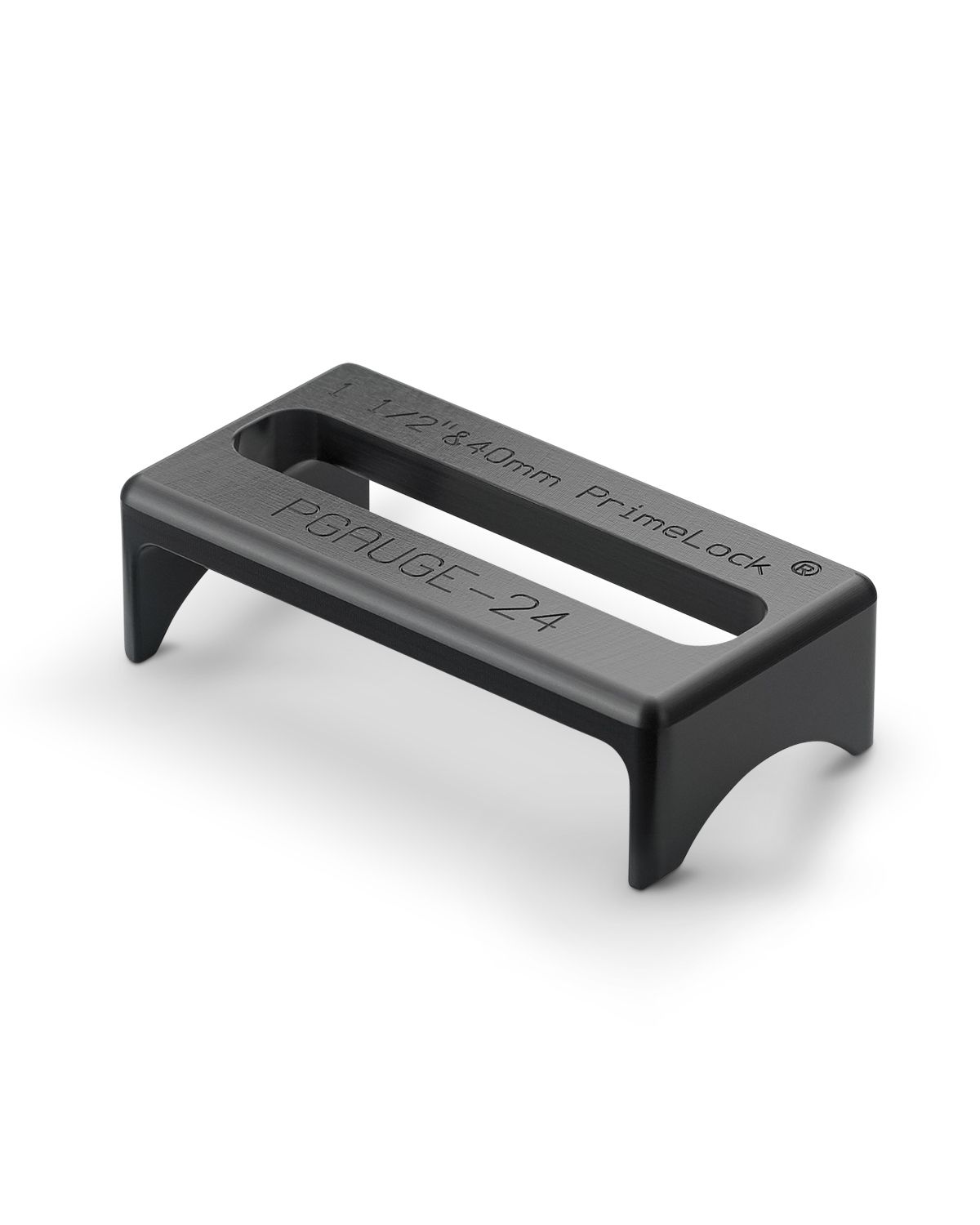

This durable, connection verification gauge is used to determine proper initial tightness of PrimeLock connections that are used in:
- High-purity, corrosive chemical handling
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- CMP
- Wet etch and clean
- High-temperature cleaning processes
- Solar, LED, flat panel display
- Excellent performance with low surface tension chemistries
Specifications
Part Number | Fitting Size | Dimensions | |||
A | B | C | |||
PGAUGE-4 | 1/4" | 0.62" (15.7 mm) | 1.30" (33.0 mm) | 1.07" (27.2 mm) | |
PGAUGE-6 | 3/8" | 0.87" (22.1 mm) | 1.37" (34.8 mm) | 1.14" (29.0 mm) | |
PGAUGE-8 | 1/2" | 1.25" (31.8 mm) | 1.51" (38.4 mm) | 1.29" (32.8 mm) | |
PGAUGE-12 | 3/4" | 1.25" (31.8 mm) | 1.80" (45.7 mm) | 1.58" (40.1 mm) | |
PGAUGE-16 | 1" | 1.37" (34.8 mm) | 1.99" (50.5 mm) | 1.79" (45.5 mm) | |
PGAUGE-20 | 1 1/4" | 1.50" (38.1 mm) | 2.55" (64.8 mm) | 2.25" (57.2 mm) | |
PGAUGE-24 | 1 1/2" and 40 mm | 1.50" (38.1 mm) | 2.97" (75.4 mm) | 2.67" (67.8 mm) |
Note: 1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
Materials: | Anodized aluminum | ||
Available sizes: | 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 40 mm | ||
1/4" - 1 1/4" Sizes | 1 1/2" and 40 mm Sizes | ||
Operating conditions*: | Media pressure | @ 21°C (70°F) 827 kPa (120 psig) | @ 21°C (70°F) 827 kPa (120 psig) |
@ 200°C (392°F) 827 kPa (120 psig) | @ 200°C (392°F) 827 kPa (120 psig) | ||
Temperature range (fluid) | -18° to 200°C (0° to 392°F) | -18° to 150°C (0°to 302°F) | |
*1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
