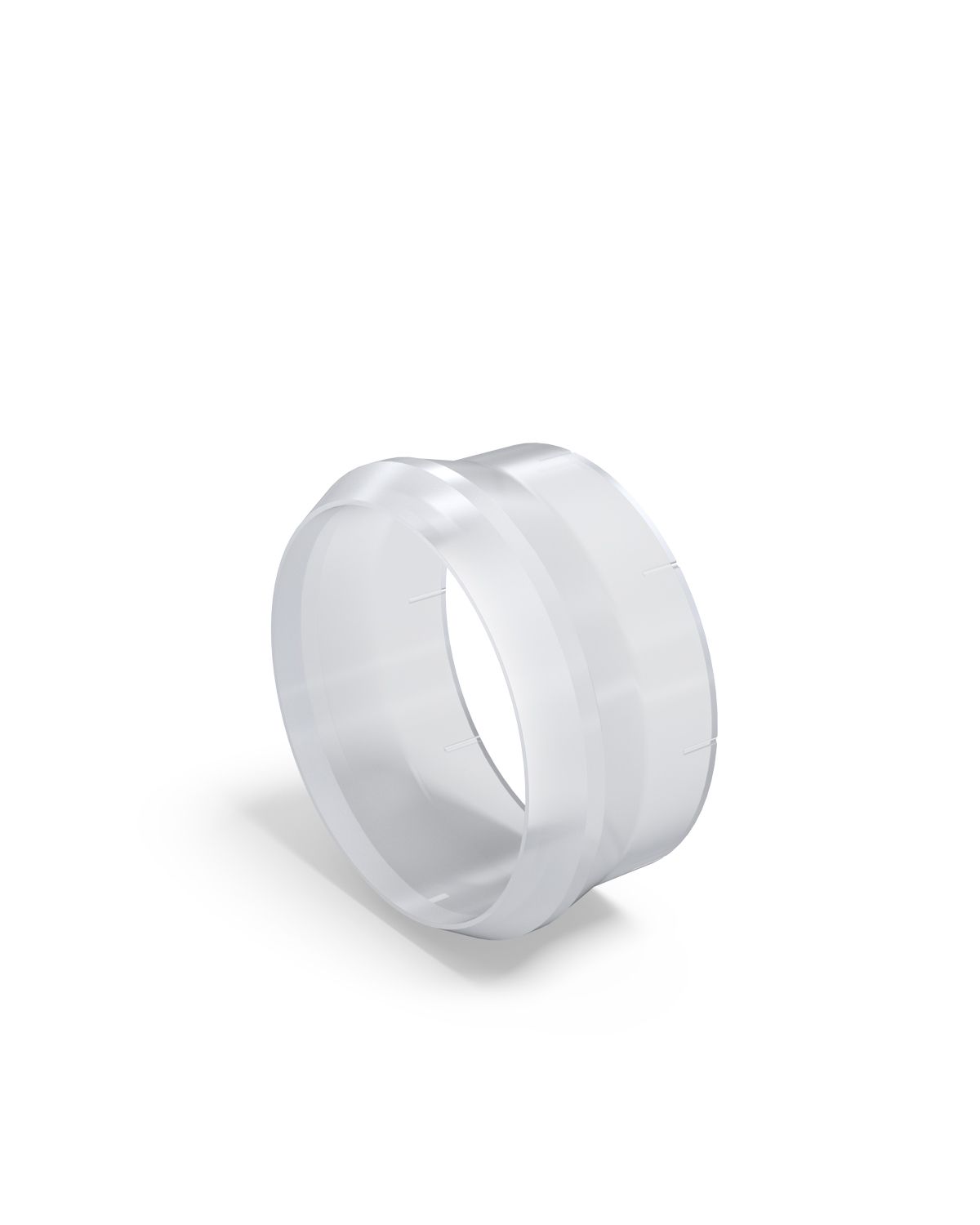

PrimeLock® Insert
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- High-purity, corrosive chemical handling
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- CMP
- Wet etch and clean
- High-temperature cleaning processes
- Solar, LED, flat panel display
- Excellent performance with low surface tension chemistries
Specifications
| Part Number* | OD Tube Size | Dimensions | |
| A | ØB | ||
| PINS-4-SET(X) | 1/4" | 0.27" (6.9 mm) | 0.38" (9.7 mm) |
| PINS-6-SET(X) | 3/8" | 0.44" (11.2 mm) | 0.56" (14.2 mm) |
| PINS-8-SET(X) | 1/2" | 0.50" (12.7 mm) | 0.70" (17.8 mm) |
| PINS-12-SET(X) | 3/4" | 0.62" (15.7 mm) | 1.02" (25.9 mm) |
| PINS-16-SET(X) | 1" | 0.62" (15.7 mm) | 1.36" (34.5 mm) |
| PINS-20-SET(X) | 1 1/4" | 0.85" (21.6 mm) | 1.65" (41.9 mm) |
| PINS-24-SET10 | 1 1/2" or 40 mm | 1.10" (27.9 mm) | 1.98" (50.3 mm) |
*Dimensions are the same regardless of package quantity (10) or (100).
Note: 1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
Successfully Opted for software Updates
Published Feb 23, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1/4" to 1" sizes
852.3 kB
Published Feb 22, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1 1/4, 1 1/2, and 40 mm
669.7 kB
1 1/2" PrimeLock® Fitting Wrench Tightening Instructions
PrimeLock® Insert Installation using a Power Drill for 1 1/4" , 1 1/2" or 40 mm tubing
PrimeLock® Insert Installation Instructions
PrimeLock® Minimum Tube Union Insert Installation Instructions
PrimeLock Fittings
PrimeLock® Fitting Technology and Installation Overview
PrimeLock® Fitting Introduction
Part Numbers
| Part Number | OD Tube Size | Quantity |
|---|---|---|
| PINS-12-SET10 | 3/4" | Set of 10 |
| PINS-12-SET100 | 3/4" | Set of 100 |
| PINS-16-SET10 | 1" | Set of 10 |
| PINS-16-SET100 | 1" | Set of 100 |
| PINS-20-SET10 | 1 1/4" | Set of 10 |
| PINS-24-SET10 | 1 1/2" or 40 mm | Set of 10 |
| PINS-4-SET10 | 1/4" | Set of 10 |
| PINS-4-SET100 | 1/4" | Set of 100 |
| PINS-6-SET10 | 3/8" | Set of 10 |
| PINS-6-SET100 | 3/8" | Set of 100 |
| PINS-8-SET10 | 1/2" | Set of 10 |
| PINS-8-SET100 | 1/2" | Set of 100 |
