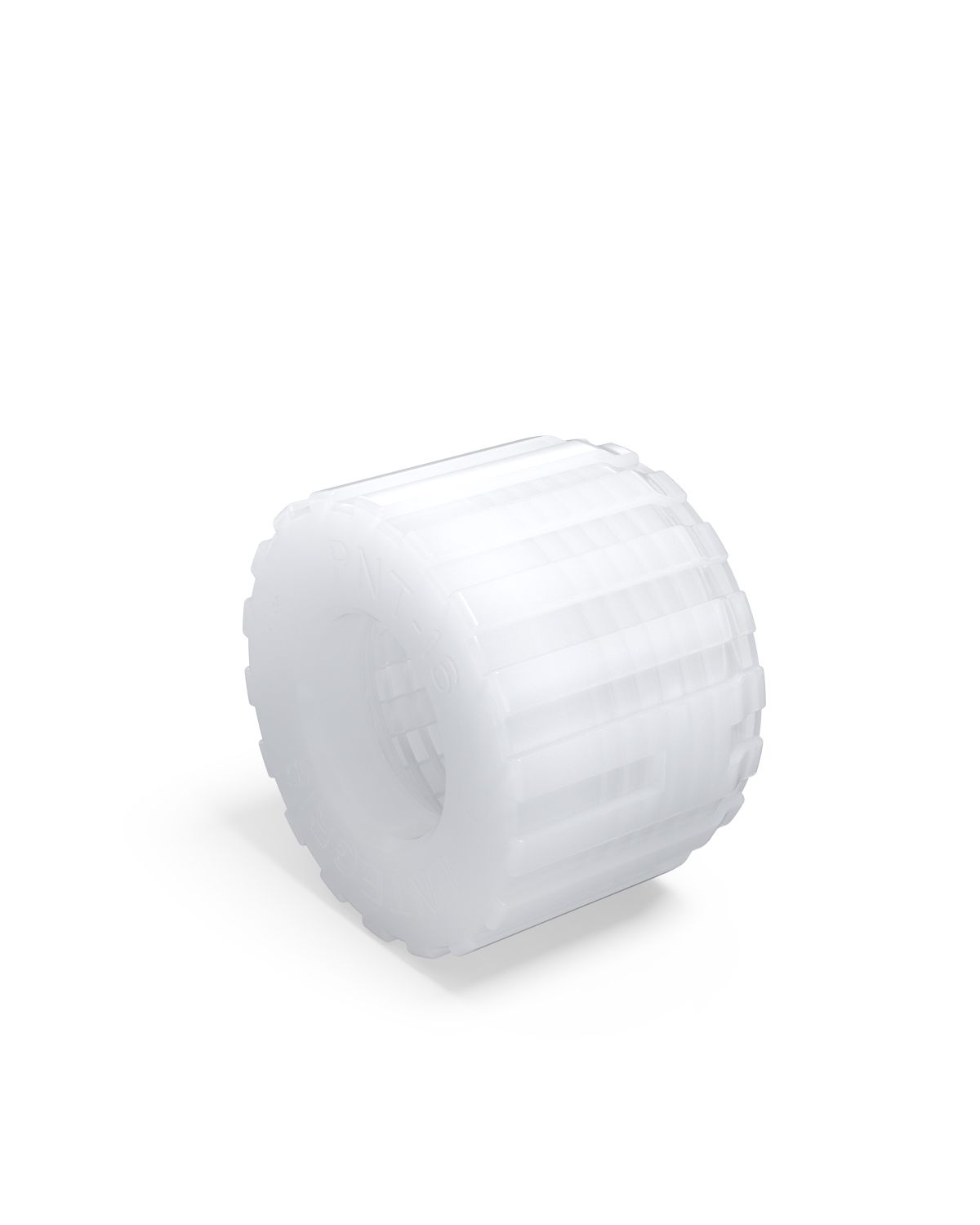

PrimeLock® PFA Nut
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- High-purity, corrosive chemical handling
- Semiconductor applications
- Photolithography
- Bulk chemical delivery
- CMP
- Wet etch and clean
- High-temperature cleaning processes
- Solar, LED, flat panel display
- Excellent performance with low surface tension chemistries
Specifications
Part Number | OD Tube Size | Dimensions | |
A | ØB | ||
PNT-4 | 1/4" | 0.80" (20.3 mm) | 0.78" (19.8 mm) |
PNT-6 | 3/8" | 0.87" (22.1 mm) | 1.11" (28.2 mm) |
PNT-8 | 1/2" | 1.01" (25.7 mm) | 1.29" (32.8 mm) |
PNT-12 | 3/4" | 1.28" (32.5 mm) | 1.74" (44.2 mm) |
PNT-16 | 1" | 1.43" (36.3 mm) | 2.10" (53.3 mm) |
PNT-20 | 1 1/4" | 1.89" (48.0 mm) | 2.61" (66.3 mm) |
PNT-24 | 1 1/2" | 2.23" (56.6 mm) | 3.07" (78.0 mm) |
PNT-M40 | 40 mm | 2.23" (56.6 mm) | 3.07" (78.0 mm) |
Note: 1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
