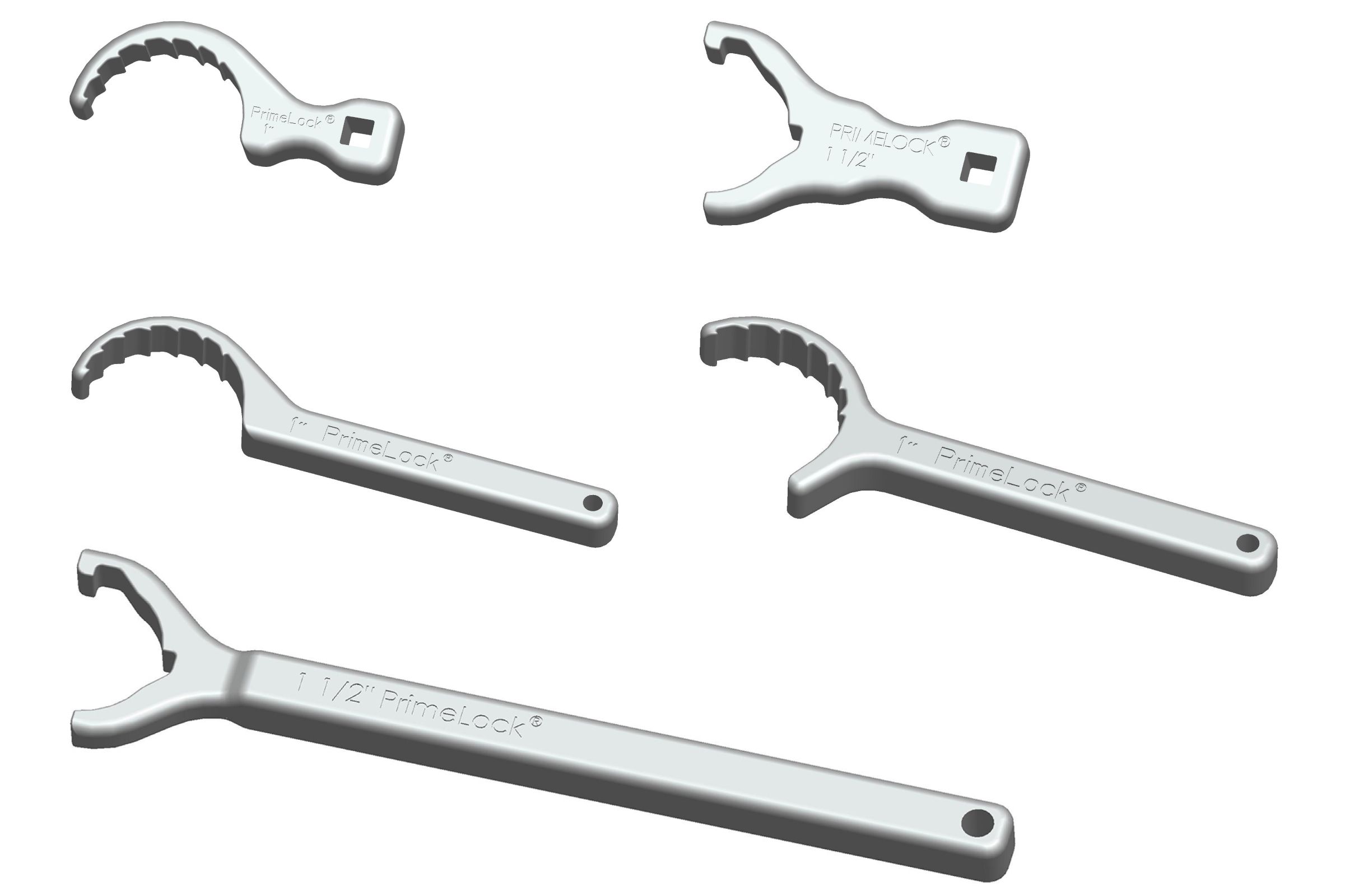

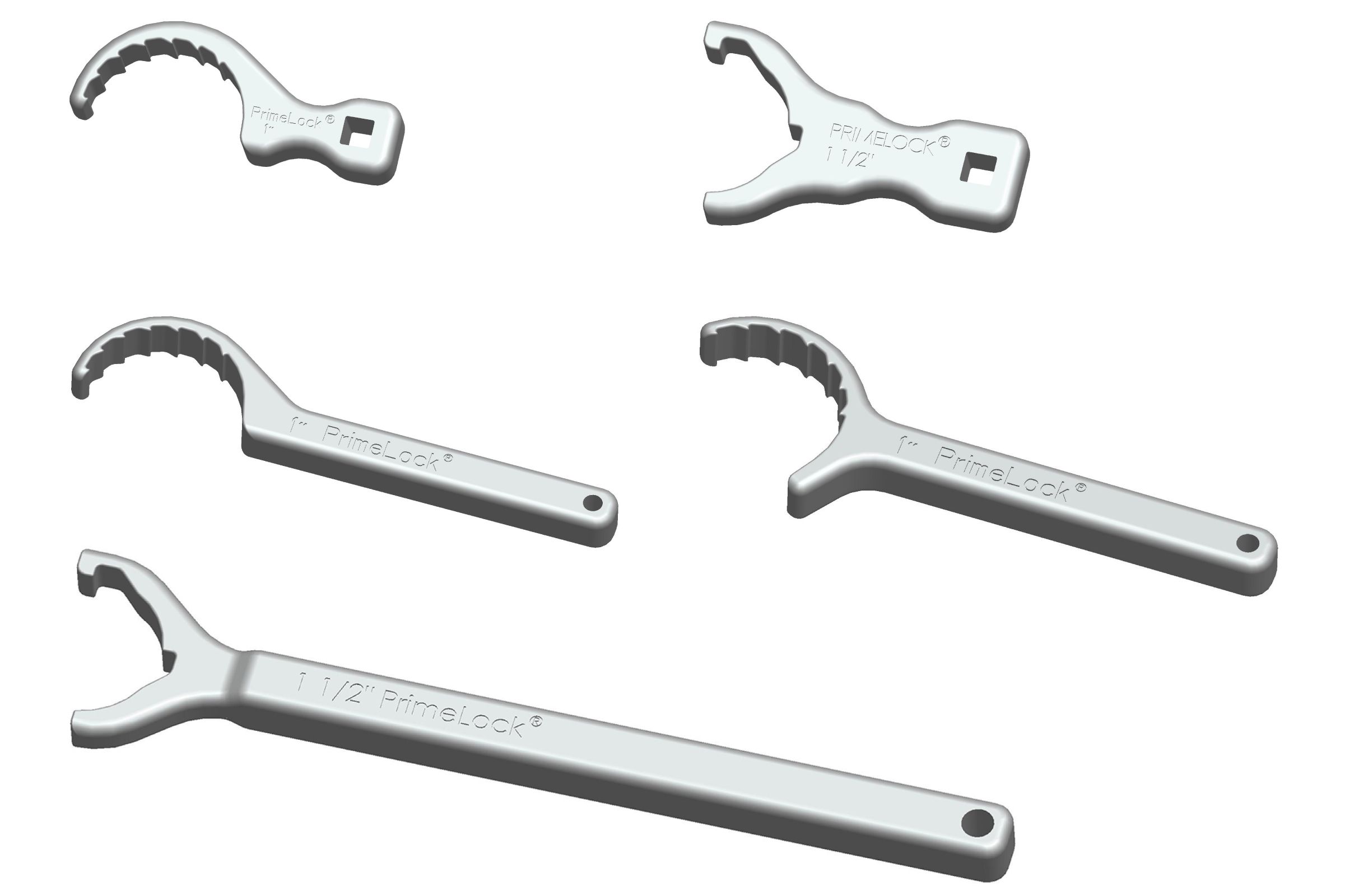

PrimeLock® Wrenches
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Specifications
| Part Number | Wrench Type | Material | Size |
| PWR-4 | Single, straight, long handle | Polymer | 1/4" |
| PWRA-4 | Single, straight, long handle | Aluminum | 1/4" |
| 01-1015676 | Single, straight, short handle | Aluminum | 1/4" |
| PWR-6 | Single, straight, long handle | Polymer | 3/8" |
| PWRA-6 | Single, straight, long handle | Aluminum | 3/8" |
| 01-1015677 | Single, straight, short handle | Aluminum | 3/8" |
| PWR-8 | Single, straight, long handle | Polymer | 1/2" |
| PWRA-8 | Single, straight, long handle | Aluminum | 1/2" |
| 01-1015678 | Single, straight, short handle | Aluminum | 1/2" |
| PWR-12 | Single, straight, long handle | Polymer | 3/4" |
| PWRA-12-A | Single, straight, long handle | Aluminum | 3/4" |
| PWRA-12-B | Single, 45°, long handle | Aluminum | 3/4" |
| 01-1015679 | Single, straight, short handle | Aluminum | 3/4" |
| PWR-16 | Single, straight, long handle | Polymer | 1" |
| PWRA-16-A | Single, straight, long handle | Aluminum | 1" |
| PWRA-16-B | Single, 45°, long handle | Aluminum | 1" |
| 01-1015680 | Single, straight, short handle | Aluminum | 1" |
| PWR-20 | Single, straight, long handle | Polymer | 1 1/4" |
| PWRA-20-A | Single, straight, long handle | Aluminum | 1 1/4" |
| PWRA-20-B | Single, 45°, long handle | Aluminum | 1 1/4" |
| 01-1021582 | Single, straight, short handle | Aluminum | 1 1/4" |
| PWR-24-A | Dual-wrench* - Straight, long handle | Polymer | 1 1/2" or 40 mm |
| PWR-24-B | Dual-wrench* - 45°, long handle | Polymer | 1 1/2" or 40 mm |
| 01-1033873 | Single, straight, short handle | Aluminum | 1 1/2" or 40 mm |
| 01-1033876 | Single, straight, body, short handle | Aluminum | 1 1/2" or 40 mm |
| PWR-24-SET | Dual-wrench - PWR-24-A and PWR-24-B | Polymer | 1 1/2" or 40 mm |
| PWR-KIT | Wrench kit | Polymer | 1/4" - 1 1/4" |
*Two PWR-24-A or PWR-24-B or combination thereof are required to assemble 1 1/2" or 40 mm size fittings.
Note: 1 1/4" PrimeLock "SpaceSaver" connections are rated to 586 kPa (85 psig) @ 100°C (212°F).
Successfully Opted for software Updates
Published Feb 23, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1/4" to 1" sizes
852.3 kB
Published Feb 22, 2018
Instruction Sheet
PrimeLock® Fitting Bench Top Insertion Tool 1 1/4, 1 1/2, and 40 mm
669.7 kB
1 1/2" PrimeLock® Fitting Wrench Tightening Instructions
PrimeLock® Insert Installation using a Power Drill for 1 1/4" , 1 1/2" or 40 mm tubing
PrimeLock® Insert Installation Instructions
PrimeLock® Minimum Tube Union Insert Installation Instructions
PrimeLock Fittings
PrimeLock® Fitting Technology and Installation Overview
PrimeLock® Fitting Introduction
Part Numbers
| Part Number | Wrench Type | Material | Nut Size | Handle Length | Wrench Angle |
|---|---|---|---|---|---|
| 01-1015676 | Single wrench - nut | Aluminum | 1/4" | Short | Straight |
| 01-1015677 | Single wrench - nut | Aluminum | 3/8" | Short | Straight |
| 01-1015678 | Single wrench - nut | Aluminum | 1/2" | Short | Straight |
| 01-1015679 | Single wrench - nut | Aluminum | 3/4" | Short | Straight |
| 01-1015680 | Single wrench - nut | Aluminum | 1" | Short | Straight |
| 01-1021582 | Single wrench - nut | Aluminum | 1 1/4" | Short | Straight |
| 01-1033873 | Single wrench - nut | Aluminum | 1 1/2" or 40 mm | Short | Straight |
| 01-1033876 | Single wrench - body | Aluminum | 1 1/2" or 40 mm | Short | Straight |
| PWR-12 | Single wrench - nut | Polymer | 3/4" | Long | Straight |
| PWR-16 | Single wrench - nut | Polymer | 1" | Long | Straight |
| PWR-20 | Single wrench - nut | Polymer | 1 1/4" | Long | Straight |
| PWR-24-A | Dual wrench - nut and body | Polymer | 1 1/2" or 40 mm | Long | Straight |
| PWR-24-B | Dual wrench - nut and body | Polymer | 1 1/2" or 40 mm | Long | 45° |
| PWR-24-SET | Dual wrench PWR-24-A and PWR-24-B | Polymer | 1 1/2" or 40 mm | Long | 45° and Straight |
| PWR-4 | Single wrench - nut | Polymer | 1/4" | Long | Straight |
| PWR-6 | Single wrench - nut | Polymer | 3/8" | Long | Straight |
| PWR-8 | Single wrench - nut | Polymer | 1/2" | Long | Straight |
| PWR-KIT | Wrench kit | Polymer | 1/4", 3/8", 1/2", 3/4", 1", 1 1/4" | Long | Straight |
| PWRA-12-A | Single wrench - nut | Aluminum | 3/4" | Long | Straight |
| PWRA-12-B | Single wrench - nut | Aluminum | 3/4" | Long | 45° |
| PWRA-16-A | Single wrench - nut | Aluminum | 1" | Long | Straight |
| PWRA-16-B | Single wrench - nut | Aluminum | 1" | Long | 45° |
| PWRA-20-A | Single wrench - nut | Aluminum | 1 1/4" | Long | Straight |
| PWRA-20-B | Single wrench - nut | Aluminum | 1 1/4" | Long | 45° |
| PWRA-4 | Single wrench - nut | Aluminum | 1/4" | Long | Straight |
| PWRA-6 | Single wrench - nut | Aluminum | 3/8" | Long | Straight |
| PWRA-8 | Single wrench - nut | Aluminum | 1/2" | Long | Straight |
